Topmould Base Design for Industrial
Product details of the mould base design
Quick Detail
Every Ruifengda mould base design is professionally designed by our experienced design team. The quality is the key to the victory of this product in market competition. The mould base design produced by Ruifengda is of high quality. And it is one of the products widely used in the industry. Ruifengda Brand works hard to achieve a win-win situation with customers.
Product Description
Ruifengda's mould base design is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
|
Tolerance |
0.02mm-0.005mm |
Rust prevention measures |
Anti rust oil, anti rust spray, vacuum packaging... |
|
Mould life |
300000-500000 Shots |
Transaction mode |
FOB/CIF |
|
Major equipment |
YASDA, OKUMA |
Testing |
CMM, Opening and closing activities... |
|
Size |
Customer Size Accepted |
Runner |
Hot runner |
|
Minimum order quantity |
1 Set |
Supply ability |
300-400 sets per month |
|
Material Science |
S50C, P20, 1.2311, 718H, 4Cr13H, 420H, S136H ... |
Payment method |
T/T, Paypal, Cash |
|
Packing |
Wooden box, plastic film |
OEM |
Available |
Accessories
All accessories of mould base can be provided according to the drawings. We can provide standard and nonstandard accessories such as HASCO, MISUMI, PUNCH, DME and LKM. Also, we process special accessories including bronze accessories, ball cage bush, self-lubricating parts, etc.
Cavity and core plates
The parallelism and verticality of pocket should be controlled within 0.02mm. The length, width, and depth tolerance of the precision mould base should be 0~+0.02mm, and the thickness tolerance of the main plates should be ± 0.02mm. These are the minimum standard. Precision machining is required for screw holes, water line holes, ejector pin holes, nozzle holes, etc. All surfaces should be scratch free, bright and flat, all chamfers should comply with our company's standards and should be uniform. In the actual machining process, corresponding precision requirements will be formulated based on specific mold design and customer needs.
CNC Machining
We have over ten CNC equipment from brands such as YASDA and OKUMA to meet the high-precision requirements of our customers. Taking YASDA as an example: constant temperature workshop 22 ℃, accuracy 0.003mm, machine travel 900X1500X600mm.
Testing
We use CMM coordinate measurement and generate accurate measurement reports. Its high-precision measurement results can ensure product quality and tolerance requirements.
Anti-corrosion treatment

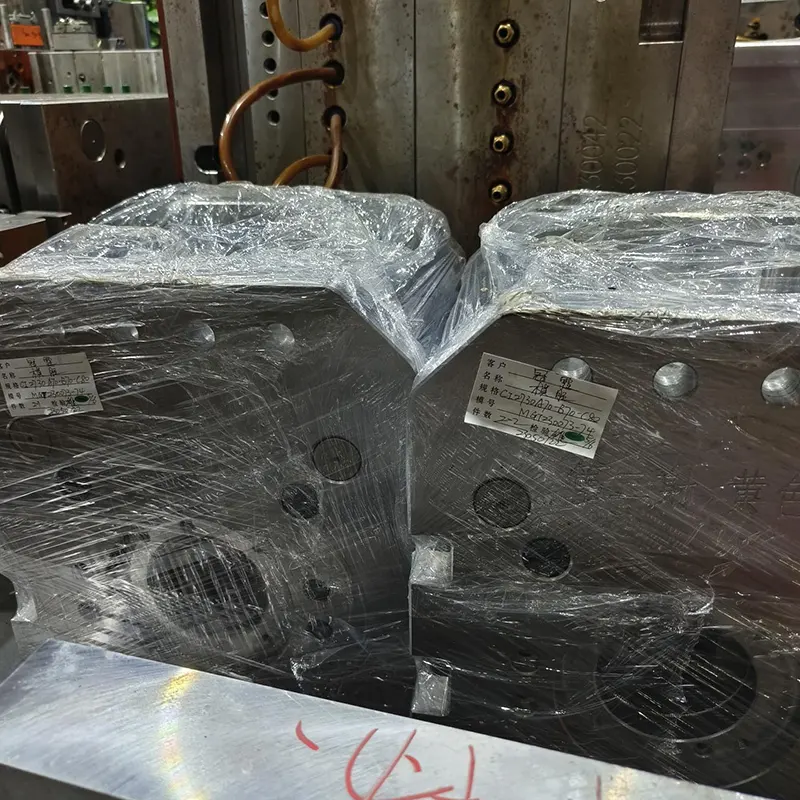

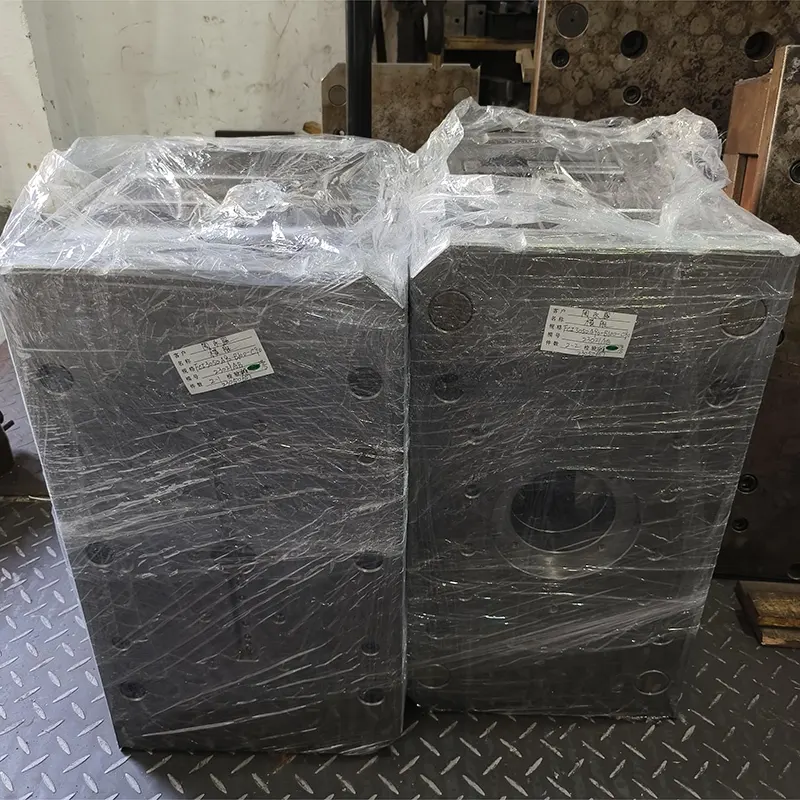

In order to reduce the impact of rust on mould base during shipping, we will use anti rust spray and anti rust oil on the surface of mould base, and then wrap them with plastic film. If necessary, vacuum packaging will be used.
fAQ
Company Information
As a company, Ruifengda Brand has always focused on the production of mold base. Ruifengda always insists on the business philosophy of 'quality first, customer first'. Under the influence of enterprise spirit, we strive to be aggressive, hard-working and diligent. We pay equal attention to production and innovation and exert ourselves to create a first-class brand and establish a good enterprise image in the industry. We have a core research and development team composed of senior technical talents in the industry, with strong professional capabilities and good guarantee for product development. With a focus on mold base, Ruifengda is dedicated to providing reasonable solutions for customers.
We are willing to go hand in hand with you to create a better future.
