Machined Mould Base Upply
Product details of the machined mould base
Product Overview
Assembly quality of machined mould base has been highly improved. This product is ensured by our QC team who conducts a stringent quality check process. Ruifengda's machined mould base is widely used in multiple industries and fields. Our product has been rapidly developed by our workers and recognized by the customers.
Product Introduction
Compared with the machined mould base of our peers, the machined mould base we produce is provided with the following advantages.
|
Tolerance |
0.02mm-0.005mm |
Rust prevention measures |
Anti rust oil, anti rust spray, vacuum packaging... |
|
Mould life |
300000-500000 Shots |
Transaction mode |
FOB/CIF |
|
Major equipment |
YASDA, OKUMA |
Testing |
CMM, Opening and closing activities... |
|
Size |
Customer Size Accepted |
Supply ability | 300-400 sets per month |
|
Minimum order quantity |
1 Set |
Payment method |
T/T, Paypal, Cash |
|
Material Science |
S50C, P20, 1.2311, 718H, 4Cr13H, 420H, S136H ... |
OEM |
Available |
|
Packing |
Wooden box, plastic film |
Mold plates
Now there are also some customers who do not order a single complete set of mold base, but only several mold plates. After receiving them, customers process and assemble them by themselves. This method can save a lot of time and shorten product delivery time.
Rough processing
Process the rough shape. After roughening, there needs to be some margin left for subsequent precision machining.

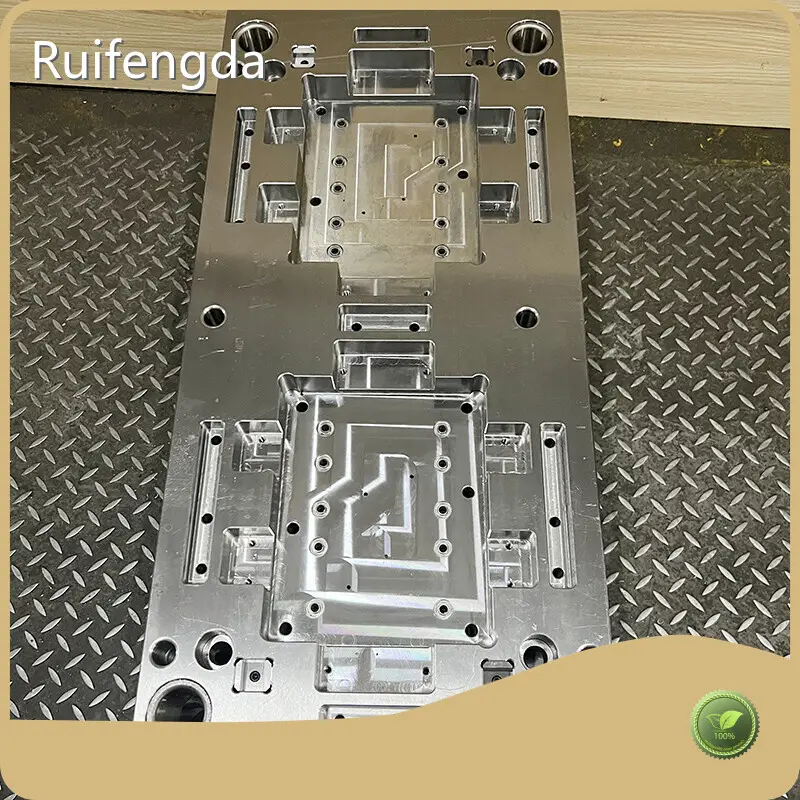

Cavity and core plates
The parallelism and verticality of pocket should be controlled within 0.02mm. The length, width, and depth tolerance of the precision mould base should be 0~+0.02mm, and the thickness tolerance of the main plates should be ± 0.02mm. Precision machining is required for screw holes, water line holes, ejector pin holes, nozzle holes, etc. All surfaces should be scratch free, bright and flat, all chamfers should comply with our company's standards and should be uniform. In the actual machining process, corresponding precision requirements will be formulated based on specific mold design and customer needs.
Runner plate
Aperture and spacing of cavities are important parts. The dimensional tolerance of the aperture is within a small range to ensure precise fit with the mating parts. The surface of the aperture is smooth, without scratches, burrs and other defects, which can reduce friction and wear, and improve the life of mold. In a multi cavity mould base, the hole spacing at the same position should be consistent, that is, the hole spacing between each cavity should be equal, which helps to ensure the uniformity and stability of all parts of the mold. After processing, we conduct strict CMM testing on the hole spacing.
fAQ
Company Information
Ruifengda Brand is a enterprise in shen zhen. We are mainly engaged in the manufacture of mold base. Ruifengda is praised and favored by customers for high-quality products and professional after-sales services. We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
