Accessories

All accessories of mould base can be provided according to the drawings. We can provide standard and nonstandard accessories such as HASCO, MISUMI, PUNCH, DME and LKM. Also, we process special accessories including bronze accessories, ball cage bush, self-lubricating parts, etc.

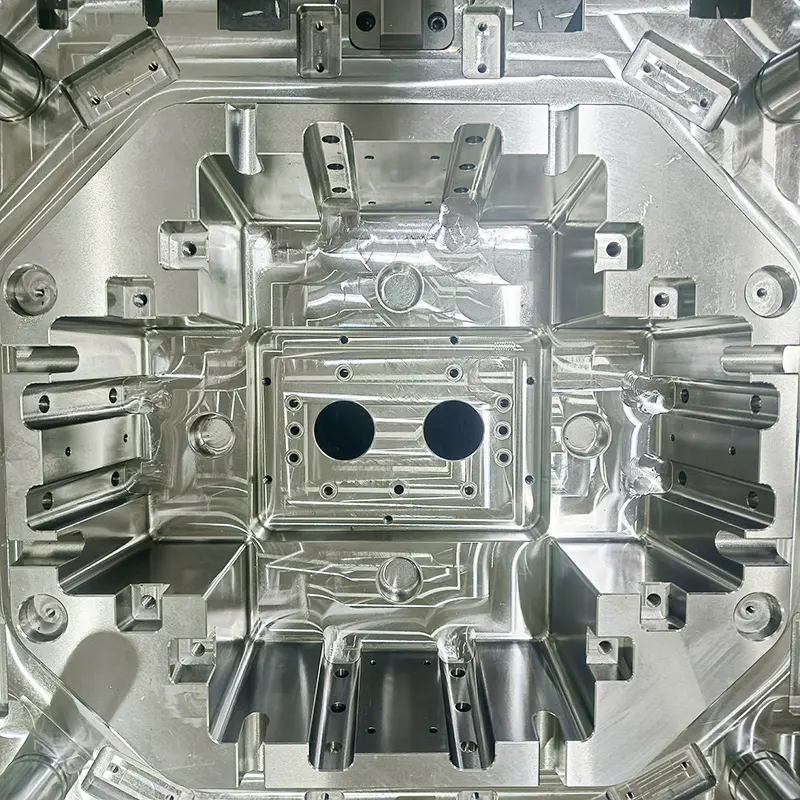

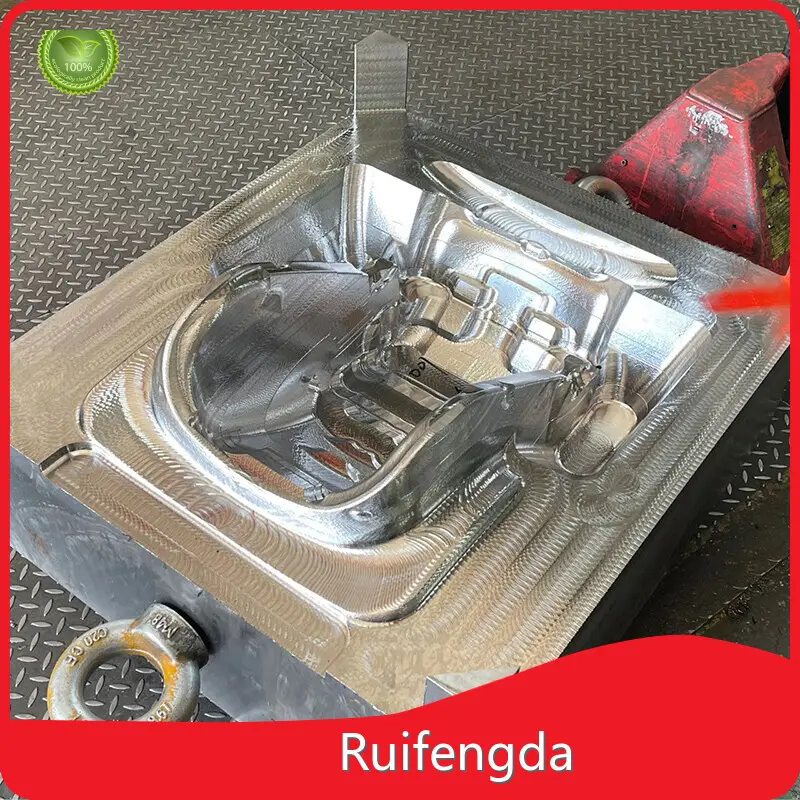

Cavity and core plates

The parallelism and verticality of pocket should be controlled within 0.02mm. The length, width, and depth tolerance of the precision mould base should be 0~+0.02mm, and the thickness tolerance of the main plates should be ± 0.02mm. Precision machining is required for screw holes, water line holes, ejector pin holes, nozzle holes, etc. All surfaces should be scratch free, bright and flat, all chamfers should comply with our company's standards and should be uniform. In the actual machining process, corresponding precision requirements will be formulated based on specific mold design and customer needs.

CNC Machining

We have over ten CNC equipment from brands such as YASDA and OKUMA to meet the high-precision requirements of our customers. Taking YASDA as an example: constant temperature workshop 22 ℃, accuracy 0.003mm, machine travel 900X1500X600mm.

Testing

We use CMM coordinate measurement and generate accurate measurement reports. Its high-precision measurement results can ensure product quality and tolerance requirements.

Anti-corrosion treatment

In order to reduce the impact of rust on mould base during shipping, we will use anti rust spray and anti rust oil on the surface of mould base, and then wrap them with plastic film. If necessary, vacuum packaging will be used.
