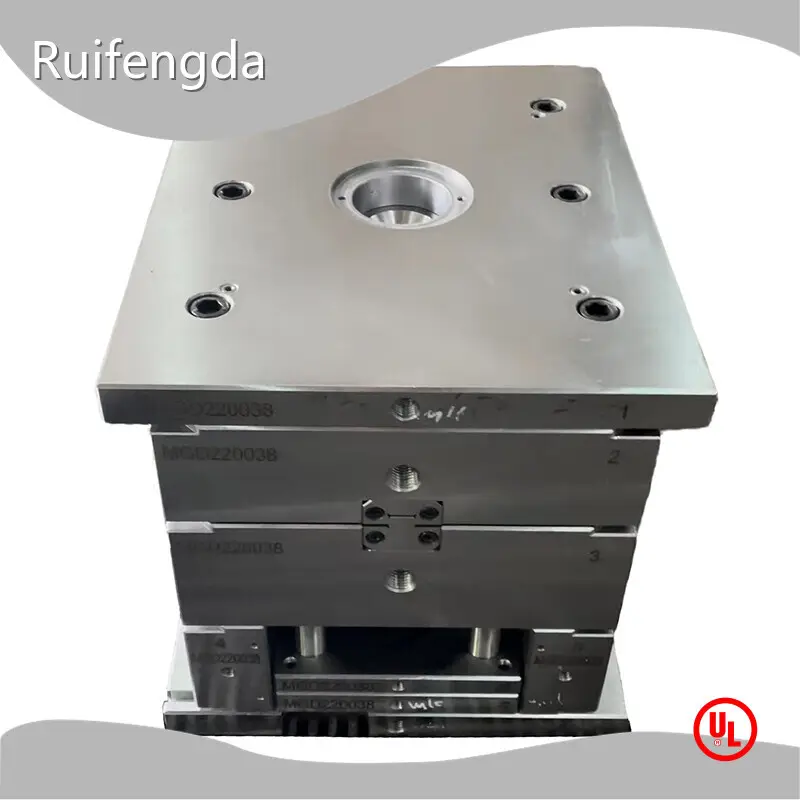

Product details of the mould base design
Product Description
Ruifengda mould base design is manufactured by our experts utilizing optimum quality material and advanced technology. Our quality inspectors make sure that the product is in accordance with international quality standards. With a high export growth rate, this product shows great market support.
Tolerance |
0.02mm-0.005mm |
Rust prevention measures |
Anti rust oil, anti rust spray, vacuum packaging... |
Mould life |
300000-500000 Shots |
Transaction mode |
FOB/CIF |
Major equipment |
YASDA, OKUMA |
Testing |
CMM, Opening and closing activities... |
Size |
Customer Size Accepted |
Runner |
Hot runner |
Minimum order quantity |
1 Set |
Supply ability |
300-400 sets per month |
Material Science |
S50C, P20, 1.2311, 718H, 4Cr13H, 420H, S136H ... |
Payment method |
T/T, Paypal, Cash |
Packing |
Wooden box, plastic film |
OEM |
Available |
Accessories
All accessories of mould base can be provided according to the drawings. We can provide standard and nonstandard accessories such as HASCO, MISUMI, PUNCH, DME and LKM. Also, we process special accessories including bronze accessories, ball cage bush, self-lubricating parts, etc.
Cavity and core plates
The parallelism and verticality of pocket should be controlled within 0.02mm. The length, width, and depth tolerance of the precision mould base should be 0~+0.02mm, and the thickness tolerance of the main plates should be ± 0.02mm. Precision machining is required for screw holes, water line holes, ejector pin holes, nozzle holes, etc. All surfaces should be scratch free, bright and flat, all chamfers should comply with our company's standards and should be uniform. In the actual machining process, corresponding precision requirements will be formulated based on specific mold design and customer needs.
CNC Machining
We have over ten CNC equipment from brands such as YASDA and OKUMA to meet the high-precision requirements of our customers. Taking YASDA as an example: constant temperature workshop 22 ℃, accuracy 0.003mm, machine travel 900X1500X600mm.
Testing
We use CMM coordinate measurement and generate accurate measurement reports. Its high-precision measurement results can ensure product quality and tolerance requirements.
Anti-corrosion treatment
In order to reduce the impact of rust on mould base during shipping, we will use anti rust spray and anti rust oil on the surface of mould base, and then wrap them with plastic film. If necessary, vacuum packaging will be used.
fAQ
Company Feature
• Our company's geographical position is excellent. Therefore, we are provided with good natural conditions, developed communication and convenient transportation.
• Our talents are high in quality and rich in industry experience. They are the solid foundation for our company's long-term development.
• Ruifengda has vigorously explored the domestic and overseas markets in various ways. mold base are currently sold well in some countries and regions in Europe, America, and Australia.
